The HIAB
Available right across Scotland
Overview

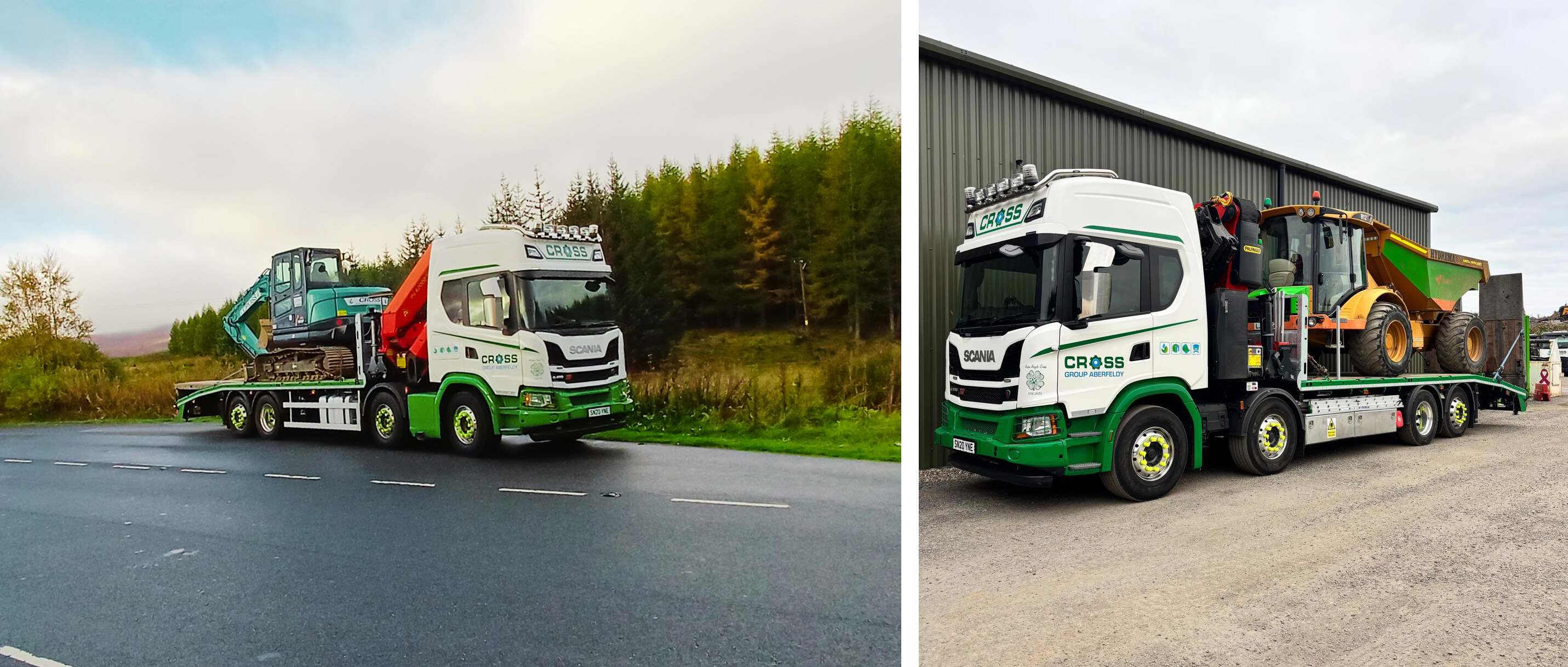

A robust 32-tonne (32,000 kg) 8-wheeler truck equipped with a cheesewedge body and a Palfinger lorry loader crane, designed for maximum versatility and efficiency in transporting and handling heavy machinery, plant equipment, and various loads.
Body Features
• Low loading angle ideal for machinery such as excavators, dumpers, tracked units, and other plant equipment.
• Capable of carrying vehicles or equipment up to 11 tonnes (11,000 kg).
• Fully flatbed configuration available for transporting containers, cabins, and other large or irregular loads.
• Bed length: 24 ft (7.3 metres)
Lorry Loader Crane (HIAB) Specifications
• Maximum lifting capacity: 8 tonnes (8,000 kg) at close range.
• Maximum reach: 14 metres
• Lifting capacity at full reach: 2.4 tonnes (2,400 kg)
• Ideal for precise loading and unloading of heavy or awkward items
Applications
• Transport of heavy plant and construction machinery
• Movement of vehicles and tracked units
• Delivery and positioning of site cabins, containers, and modular buildings
• General heavy haulage and logistics operations requiring crane-assisted loading and unloading
Quick Stats
| Specification | Detail |
|---|---|
| Gross Vehicle Weight | 32 tonnes (32,000 kg) |
| Maximum Payload | 11 tonnes (11,000 kg) |
| Crane Maximum Lift | 8 tonnes (8,000 kg) |
| Crane Maximum Reach | 14 metres |
| Lift Capacity at Full Reach | 2.4 tonnes (2,400 kg) |
| Bed Length | 24 ft (7.3 metres) |
Contact us here for more information
